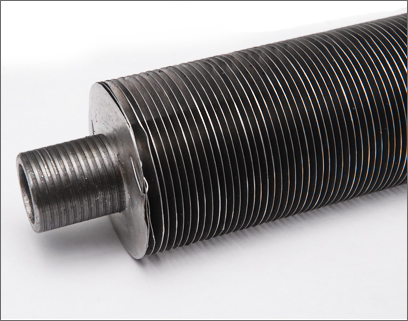

Continuous Spiral ‘G’ Type Fins

We are leading Continuous Spiral ‘G’ Type Fins, Manufacturers, Suppliers and Exporters located in Rabale, Navi Mumbai India.


Continuous Spiral ‘G’ Type Fins The strip is tension wound into a machined groove over the base tube material. This ensures maximum heat transfer at high temperature.

Maximum operating Temperature - 450o C:

a) Fin Material
:

 Aluminum / Carbon Steel

    Fin Height
:
 1/2’’ to 5/8’’ (12.7 mm to 15.87 mm)
    Fin Pitch    8fins / inch to 11 fins/ inch (316 fins/meter to 433 fins/meter)

b)  Base Tube      Diameter
:
3/4’’ to 2” (19.05 mm to 50.8 mm)
     Tube Material
:
Carbon Steel / Stainless Steel

Application :
More specifically used in Air Cooled Exchangers OR Condensers
