Wire Wound Finned Tubes (Root Soldered)

We are leading Wire Wound Finned Tubes (Root Soldered), Suppliers and Exporters located in Rabale, Navi Mumbai India.


Wire Wound Finned Tubes (Root Soldered)

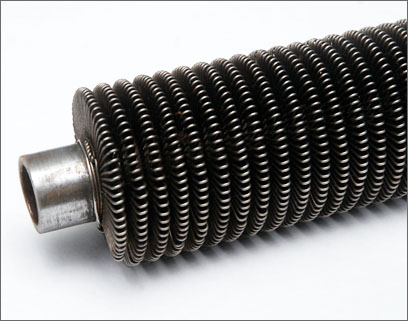

These finned tubes have fins made of wire instead of strips. Continuous loops of wire are formed and are continuously soldered to the circumference of the tube to ensure 100% contact. Loops per turn and turns per foot can be altered as per surface area requirements. Due to continuous soldering of wire loops these finned tubes offer a very high heat transfer efficiency with less air pressure drop.

Maximum operating Temperature - 175o C :

a) Tube Diameter
:
5/8’’ to 1” (15.8 mm to 25.4 mm)
     Tube Material
:
 Carbon Steel / Stainless Steel / Copper / Cupro-Nickel

b) Wire Material
:
GI Wire / Stainless Steel Wire / Copper Wire
    Wire Thk.
:
0.7mm
    Loops per Turn
:
58 – 90 Nos. per turn.
    Turns per foot
:
36 – 66 Turns per foot.
